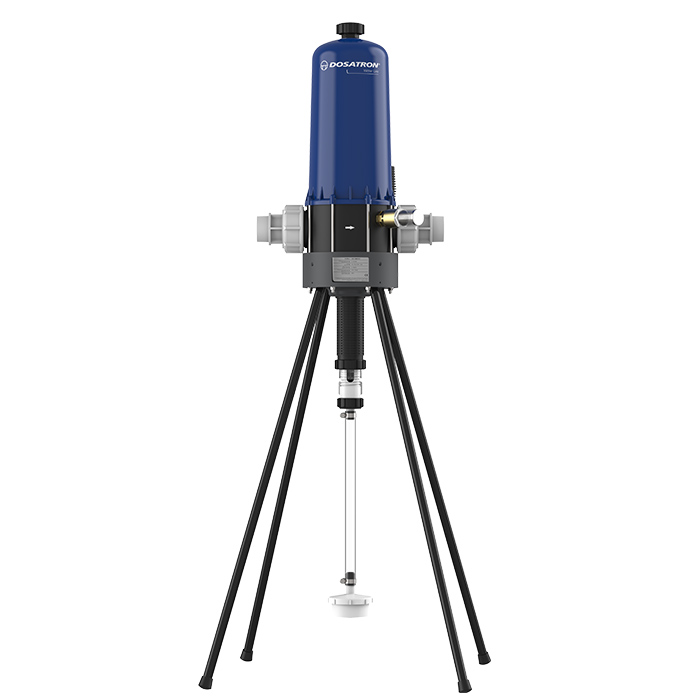

Dosatron chlorine dosing pump - D20WL2 model

Click to enlarge

Dosatron chlorine dosing pump - D20WL2 model

Back to the product list

D20WL2

Specific features

The D20 WL range meets treatment needs from 1 to 20 m3.

Proportional dosing and without electricity
Proportionality dependent on water flow
Integrated homogenization
Engine bell made of cast aluminium

Request a Quote Request Service, Parts or Support

Specifications

Injection range 0,2 - 2 % [1:500 - 1:50]
Water flow range 1 - 20 m3/h
Operating water pressure 0,12 - 10 bar
Concentrated additive injection 2 - 400 l/h
Stroke volume ~ 5 l
Connections NPT-BSP 50x60 - 2 M

Serial equipments

Seals for alkaline additives
Support legs

Downloads

eclate-d20wl2-u

Parts Diagrams - D20WL2

manual-notice-d20

Manual - D20WL
