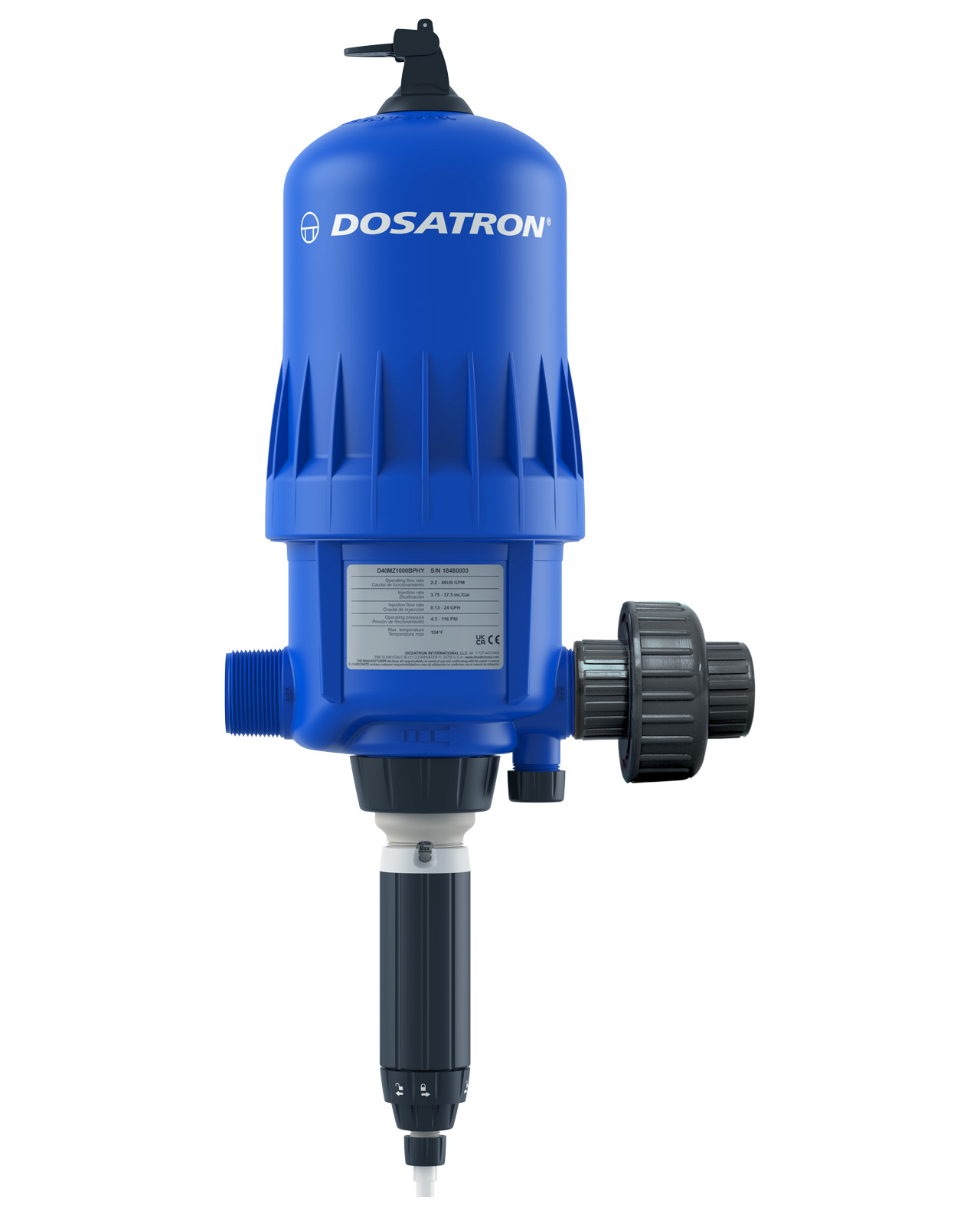

Dosatron D40MZ1000BPVFHY image
Dosatron D40MZ1000BPVFHY image
Back to the product list

D40MZ1000-HY: High Flow Nutrient Dosing Pump

The Dosatron D40MZ1000-HY is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. Because the D40MZ1000-HY can be adapted to new or existing Hi-Flo Nutrient Delivery Systems, installation is easier than ever. Simply swap out the injection stem and plunger assembly to achieve the extended dosing range.

  • Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
  • Water Flow Range: 2.2 to 40 GPM
  • Operating Pressure Range: 4.3 to 116 PSI
  • Available Housing Materials: Polypropylene
  • Dimensions: 125 1/4” x 8 1/2”
  • Weight: 12 lbs
  • Connection Size: 1 1/2” NPT
  • Maximum Temperature: 104°F

Included Accessories: 6’ clear suction tube, weighted strainer, mounting bracket and operating manual

Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor.
