Dosatron chlorine dosing pump - D8WL3000IE model

Click to enlarge

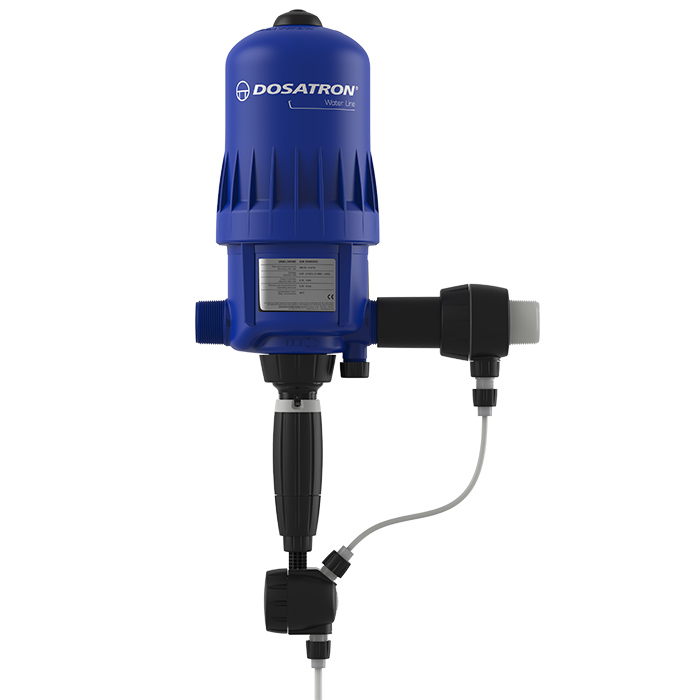

Dosatron chlorine dosing pump - D8WL3000IE model

Back to the product list

D8WL30000 IE

The D8WL range of dispensers meets the dosing needs for flow rates from 500 to 8,000 l/h.

Proportional dosing and without electricity
Proportionality dependent on water flow
Outlet injection
AF dosing seals and an external injection kit

Request a Quote Request Service, Parts or Support

Specifications

Injection range 0,03 - 0,125 % [1:3000 - 1:800]
Water flow range 500 l/h - 8 m3/h
Operating water pressure 0,35 - 8 bar
Concentrated additive injection 0,15 - 10 l/h
Stroke volume ~ 1,7 l
Connections NPT-BSP 40x49 - 1"1/2 M

Serial equipments

Seals for alkaline additives
External Injection

Available options

Support legs
ACS Certification - Drinking Water France
NSF Certification
