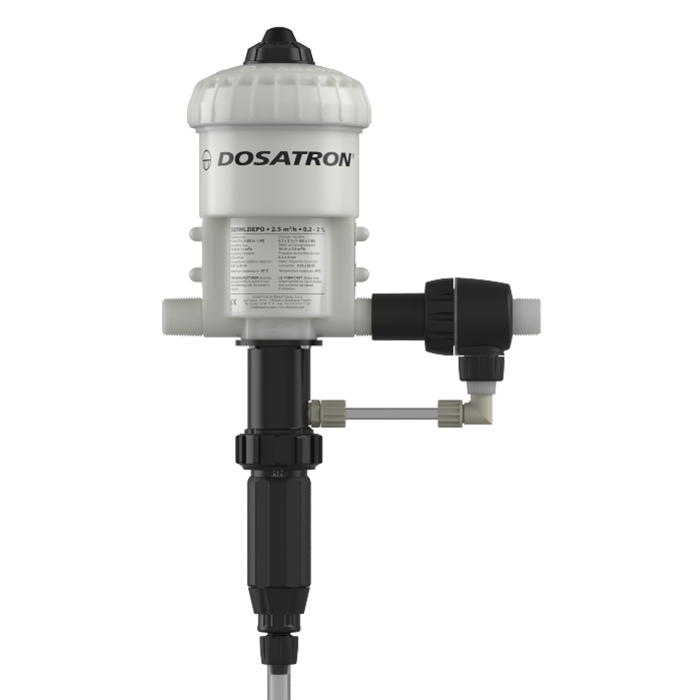

Dosatron expert wastewater treatment pump - D25WL2IEPPO PVDF model

Click to enlarge

D25WL2 IE PO PVDF

Polymer injection system

The D25WL2 IE PO PVDF dispenser is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products and external injection.

Proportional dosing and without electricity
Proportionality dependent on water flow
Pump casing and motor housing made of PVDF

Request a Quote Request Service, Parts or Support

Specifications

Injection range 0,2 - 2 % [1:500 - 1:50]
Water flow range 10 l/h - 2,5 m3/h
Operating water pressure 0,3 - 6 bar
Concentrated additive injection 0,02 - 50 l/h
Stroke volume ~ 0,45 l
Connections NPT-BSP 20x27 - 3/4"M

Serial equipments

Seals for additives up to pH 9
External Injection
Kit for viscous additives recommended for more than 200 or 400 cPs (depending on model)
PVDF housing for highly concentrated acids and other aggressive concentrates

Available options

Dynamic Mixer
